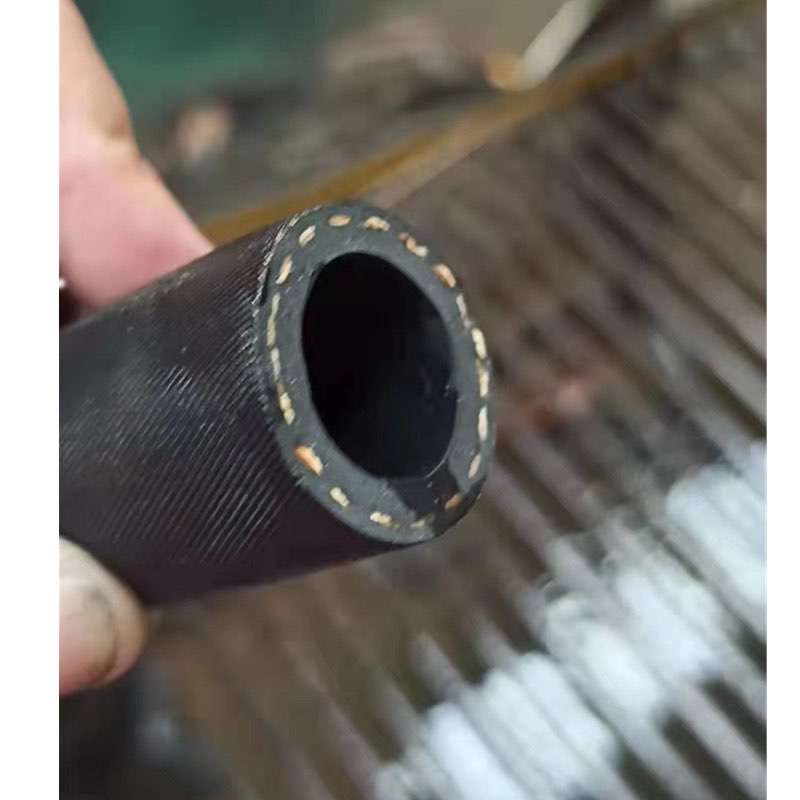

Air Hose 3/4”
Tube: Oil resistant synthetic rubber.
Tube standard: GB/SAE/DIN.
Reinforcement: One or two ,more high tensile steel wire braided.
Type:Air hose coupling female type - Size 3/4"
Air hose coupling male type - Size 3/4"
Air hose coupling hose end type - Size 3/4"

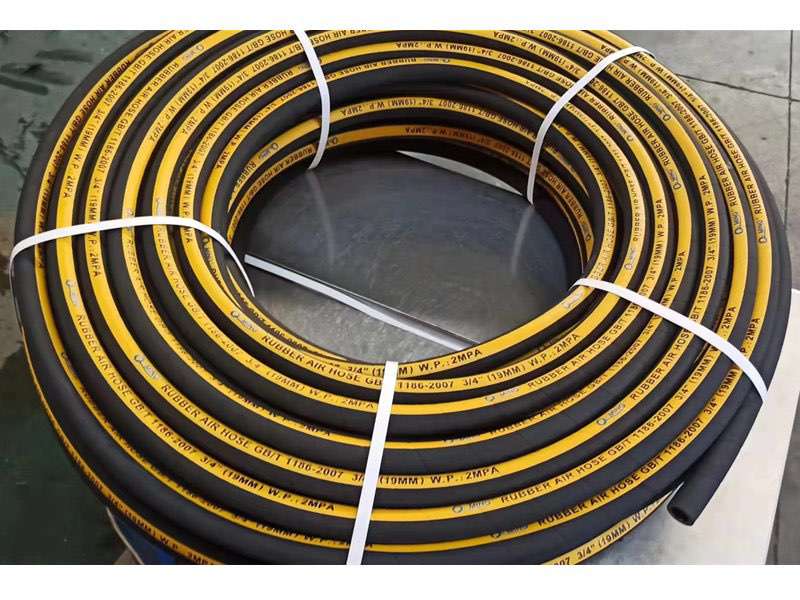

Air Hose 3/4"
Working temperature :-40℃~+100℃(oil), -30℃~+50℃(air),below+80℃(water).
Application:Mineral,Mine hydraulic support, oil field exploitation, suitable for engineering construction, lifting transport, metallurgy, forging press, mining equipment, ships, injection molding machinery, agricultural machinery.
Features:
1.It is oil resistant, heat resistant, aging resistant performance;
2. Bearing high pressure, pulse superior performance;
3.The length of hose we can do under your request.
• Application: it is used for delivery of compressed air and oil mist, other general purposes.
• Temperature range: -30℃ to + 100℃

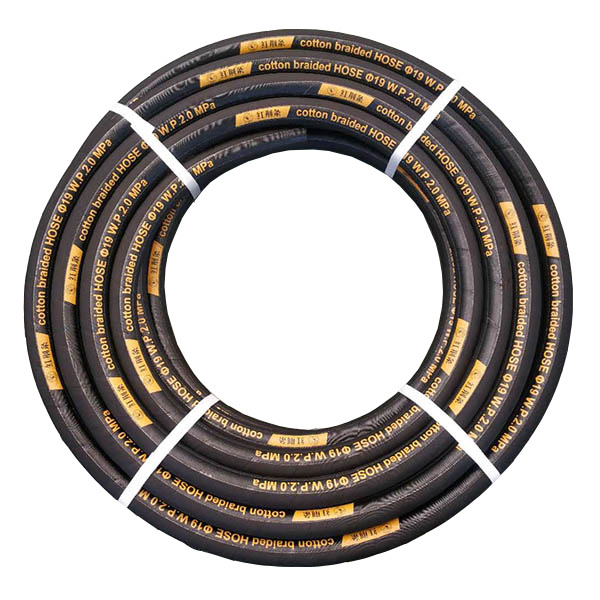

| Cord braided Rubber Air Hose Technical Data Sheet | ||||||
| Model （inch） | Inner Diameter（mm) | Working Pressure (BAR) | Working Pressure (PSI) | Blasting Pressure (BAR） | Blasting Pressure（PSI） | Length （Meter/Roller） |
| 1/4" | 6 | 20 | 300 | 60 | 870 | 50/100 |
| 5/16" | 8 | 20 | 300 | 60 | 870 | 50/100 |
| 3/8" | 10 | 20 | 300 | 60 | 870 | 50/100 |
| 1/2" | 13 | 20 | 300 | 60 | 870 | 50/100 |
| 5/8" | 16 | 20 | 300 | 60 | 870 | 50/100 |
| 3/4" | 19 | 20 | 300 | 60 | 870 | 50/100 |
| 1" | 25 | 20 | 300 | 60 | 870 | 50/100 |
| 1-1/4" | 32 | 20 | 300 | 60 | 870 | 50 |
| 1-1/2" | 38 | 20 | 300 | 60 | 870 | 50 |
| 2" | 51 | 20 | 300 | 60 | 870 | 50 |
| Steel Wire Air Hose Technical Data Sheet | |||
| Model | Working Pressure (MPA) | Working Pressure (PSI) | Notes |
| 1*19 | 10.5 | 1523 | 10 |
| 1*25 | 8.7 | 1262 | 14 |
| 1*32 | 6.2 | 900 | 20 |
| 1*38 | 5 | 725 | 24 |
