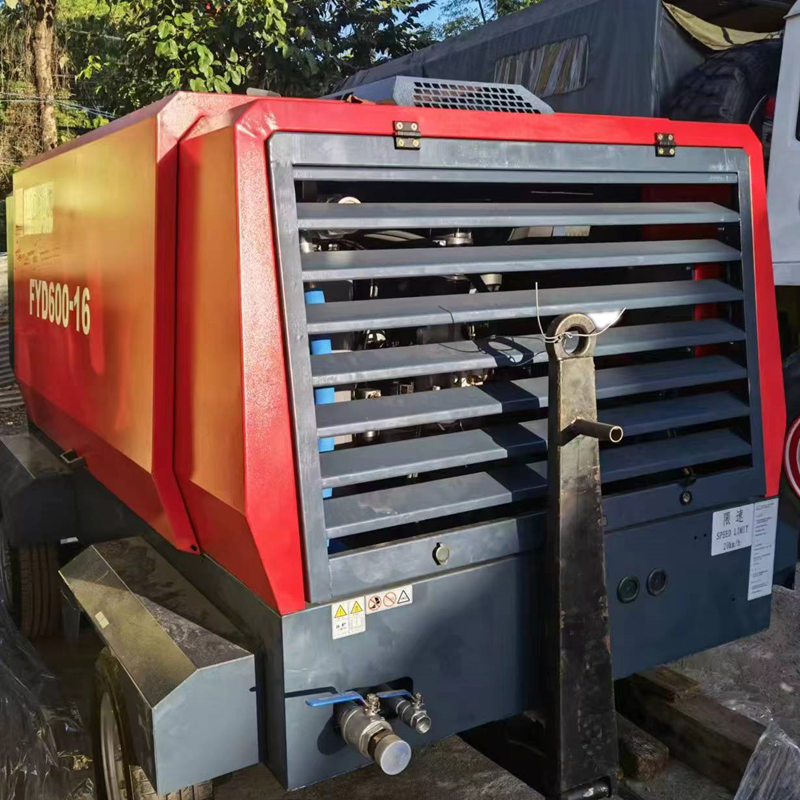

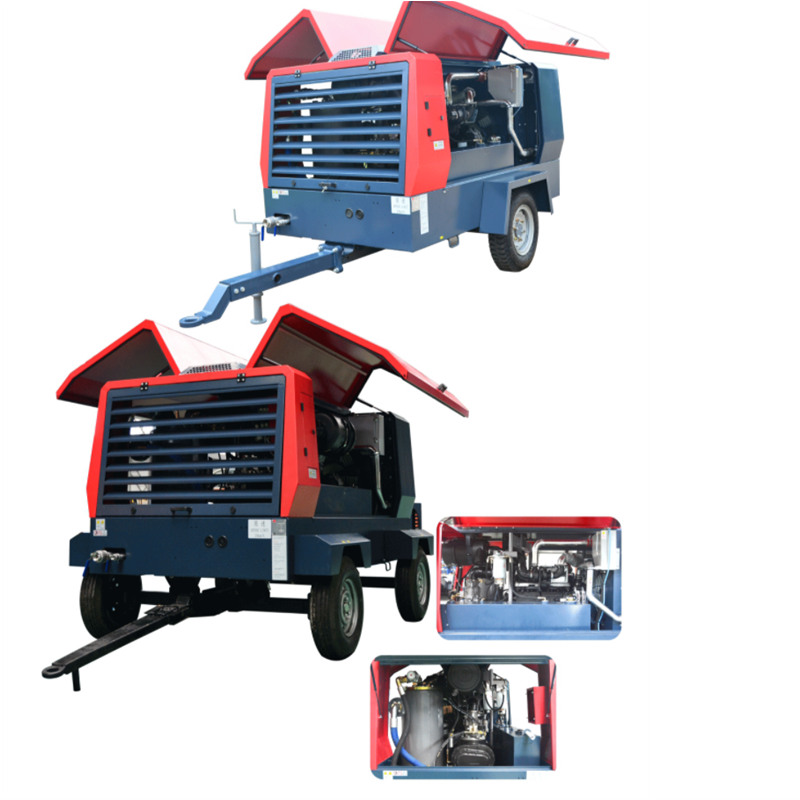

Screw Air Compressor Model No.HGT550-16C
Screw Air Compressor Model is used to power pneumatic tool and machines such as pneumatic breaker, jack hammer, drilling machine, oil cleaning machine, sandblasting machine, drilling rig and so on.
| Parameters of stationary air compressor | |
| Model | HGT550-16C |
| Exhaust volume | 17/15（m/min) |
| Rated Pressure | 13/16bar |
| Compression level | 1 |
| Air tank volume | 130bar |
| Screw oil quantity | 65L |
| Engine | Dongfeng CUMMINS |
| Engine model | QSB5.9-C210 |
| Emission Standard | Country||| |
| Number of cylinders | 6 |
| Rated power | 154kw |
| Rated speed | 2000/2100rpm |
| Idling speed | 1400rpm |
| Diesel engine lubricating oil | 18L |
| Coolant volume | 50L |
| Fuel tank volume | 220L |
| Battery | 6-QW-135MF×2 |
| Interface size | 1-G2” 1-G1” |
| L | 4200/3000mm |
| W | 1980/2020mm |
| H | 2210/2300mm |
| Operating Weight | 2700/2700kg |
| Unit traveling mode | Two wheel movement/Four wheel movement |
Screw Air Compressor Product features:
1.High Reliability
The main parts and components are produced by well-known domestic enterprises, with reliable quality, constant pressure and stable flow. The continuous automatic regulation of the displacement from 0 to 100% is achieved, which is efficient, energy-saving, stable and reliable; Economical, no pollution case, low noise.
2.Convenient
Small volume, light weight and low noise; It is light in shape and convenient for transportation. The actual area is small. It can enter and exit freely under narrow working conditions, reducing the transportation version. Fully open the door to ensure a wide operating space for maintenance and repair. Save time and improve efficiency. In the process, we no longer worry about unstable flow and insufficient pressure.
3.Overall monitoring
Equipment operation status can be fully monitored; The operation status of the control panel and equipment is clear at a glance to ensure the safety of people and machines.
