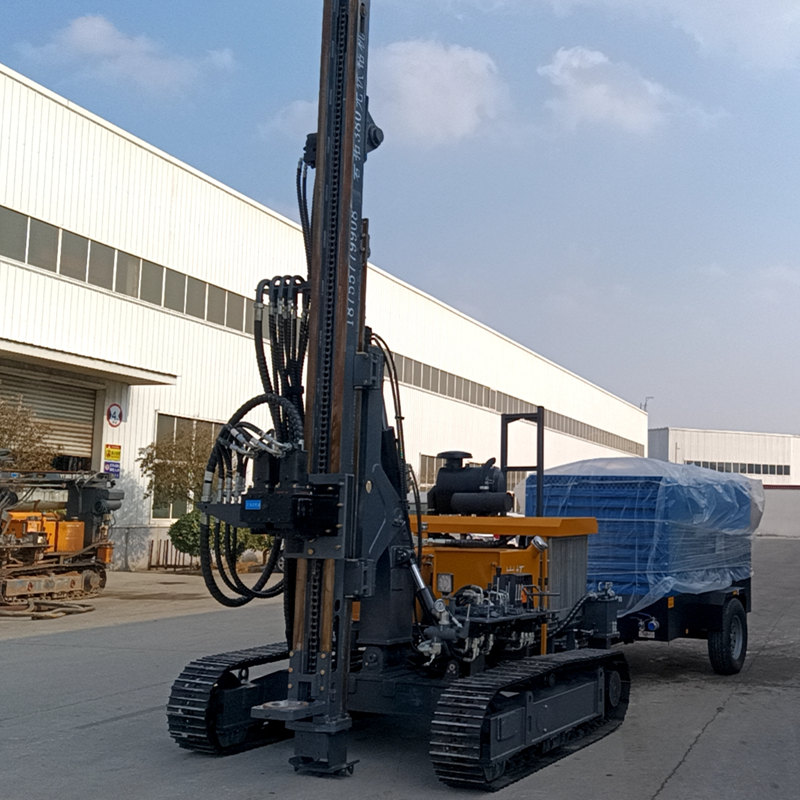

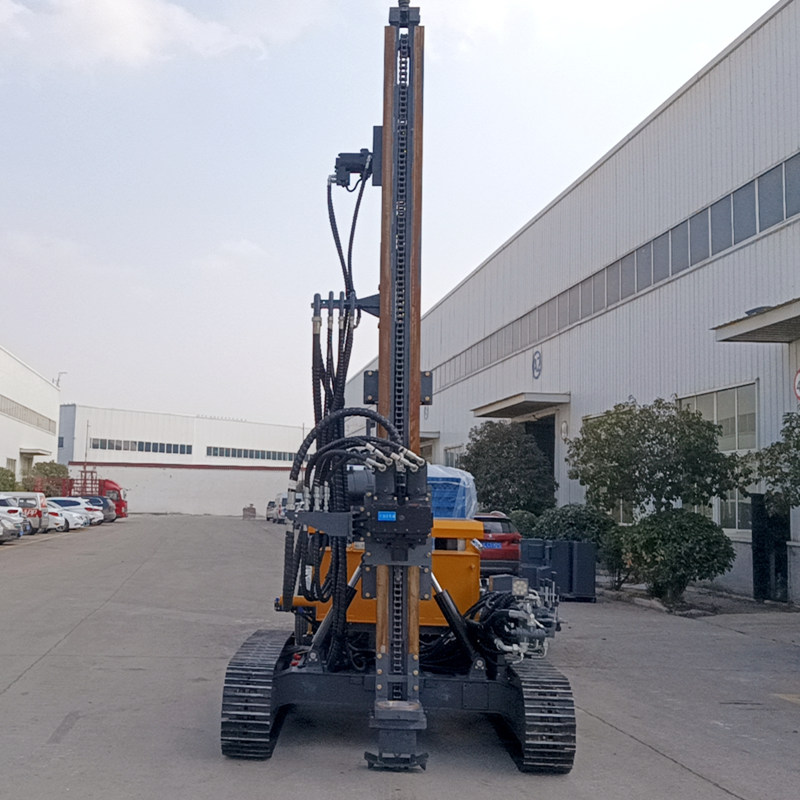

PD380 Solar Photovoltaic Drilling Rig
- Drilling diameter : 90-400mm
- Economic pore depth : 0-50m
- External dimensions : long4700 *high 2800 *wide 2150mm
- Vehicle weight : 5000KG
- Walking speed : 0-2. 5Km/h
- Ground clearance : 310mm
- Supporting drill rod : 89*2m or 102*2m
Compared to other manufacturers, the PD380 photovoltaic drilling rig has the following characteristics:
1. It adopts a PC heavy-duty track assembly, which has better walking performance and high stability;
2. Choose Yuchai Power 75KW four cylinder diesel engine with high power;
3. Select the PERMCO triple gear pump from the United States, with separate control for each execution action, easy to troubleshoot, and sufficient and strong flow rate;
4. The propulsion mechanism adopts the American Eaton 6K series 490 displacement cycloidal motor, which has higher pressure resistance and greater lifting force. At the same time, it is equipped with a balance valve and brake system, which has strong stability and low failure rate.
PD380 Solar Photovoltaic Drilling Rig is suitable for working conditions such as rock down-the-hole drilling, spiral drilling, and photovoltaic pile twisting. max.400 mm holes. 3 meters in depth. and it is equipped with an air compressor to drill rocks.
PD380 Solar Photovoltaic Drilling Rig main parameters
|
Serial Number |
Component |
Specifications |
Notes |
|
1 |
External dimensions |
long4700 *high 2800 *wide 2150mm |
|
|
2 |
Vehicle weight |
5000KG |
|
|
3 |
Walking speed |
0-2. 5Km/h |
|
|
4 |
Ground clearance |
310mm |
|
|
5 |
Sliding frame pitch angle |
105°down and 12°elevation |
|
|
6 |
Maximum swing angle of the slide frame |
Left 20°Right 20° |
|
|
7 |
Compensation length |
900mm |
|
|
8 |
One thrust length |
2650mm |
|
|
9 |
Lift force |
0-50KN |
|
|
10 |
Rotating torque |
0-9000N.m |
|
|
11 |
Rotation speed |
0-120Rpm |
|
|
12 |
Working air pressure |
0.7-2. 5Mpa |
|
|
13 |
Air consumption |
0-30m³/min |
|
|
14 |
Power |
YudongYCD4J22T-105 (78KW/2300r/min) |
|
|
15 |
Supporting drill rod |
89*2m or 102*2m |
|
|
16 |
Applicable rock |
f=6-20 |
|
|
17 |
Drilling diameter |
Φ90-400mm |
|
|
18 |
Economic pore depth |
0-50m |
|
|
19 |
Gradeability |
≤30° |
|

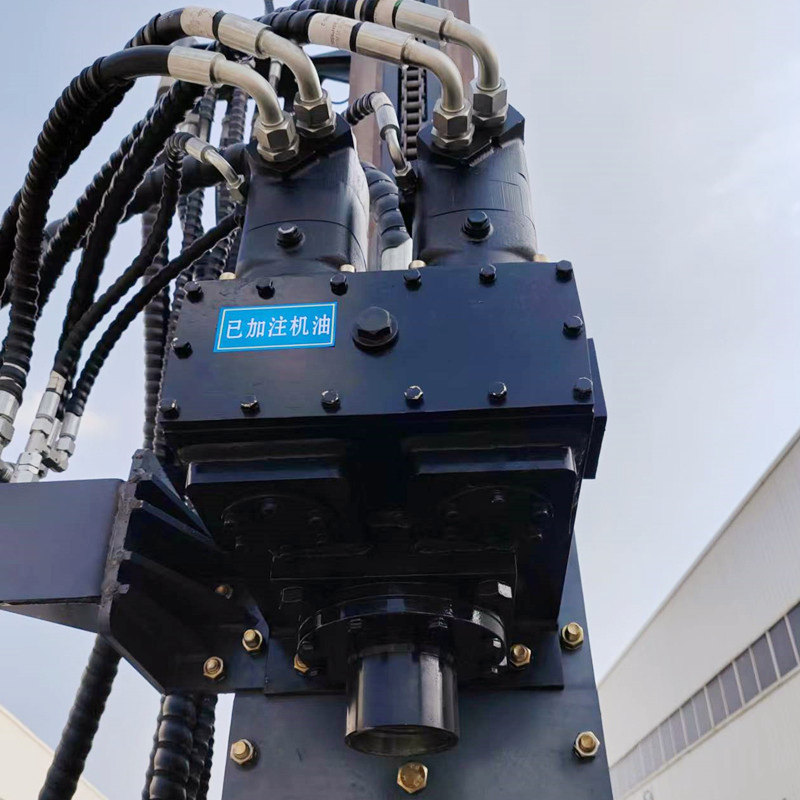

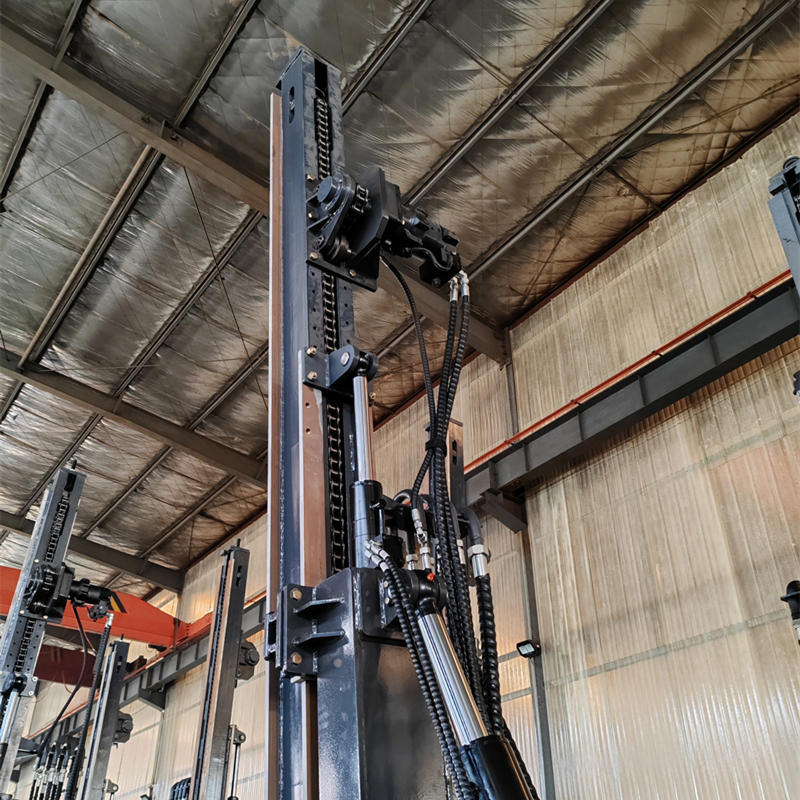

Rotary heads

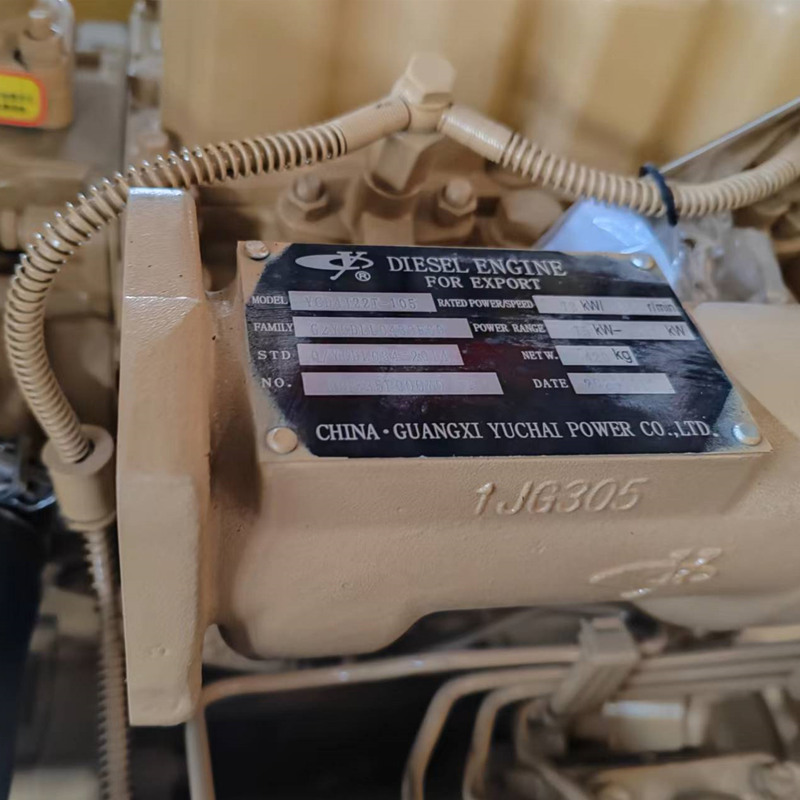

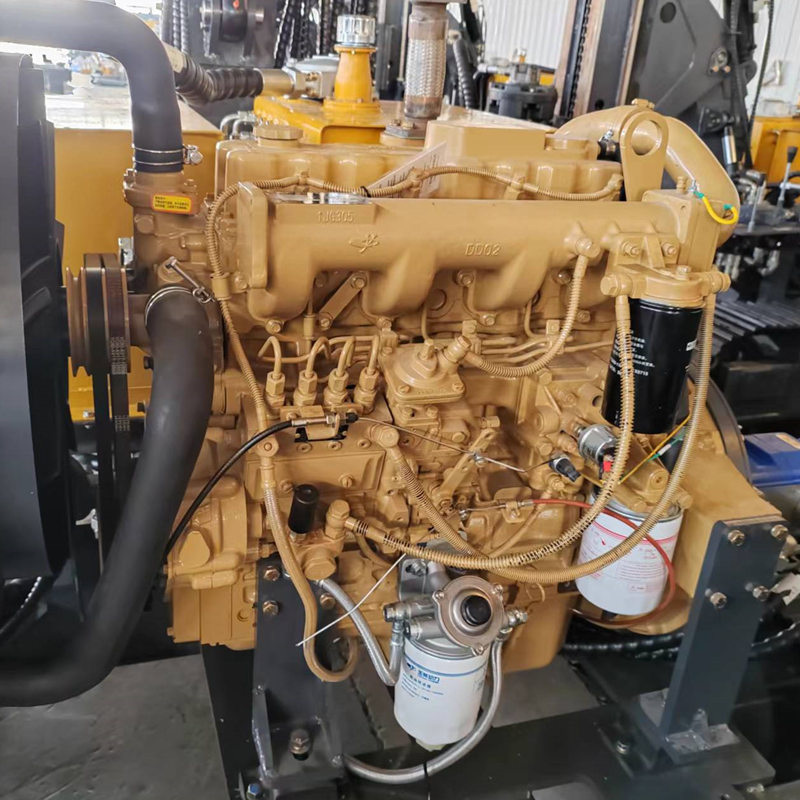

Yuchai Power 75KW four cylinder diesel engine with high power

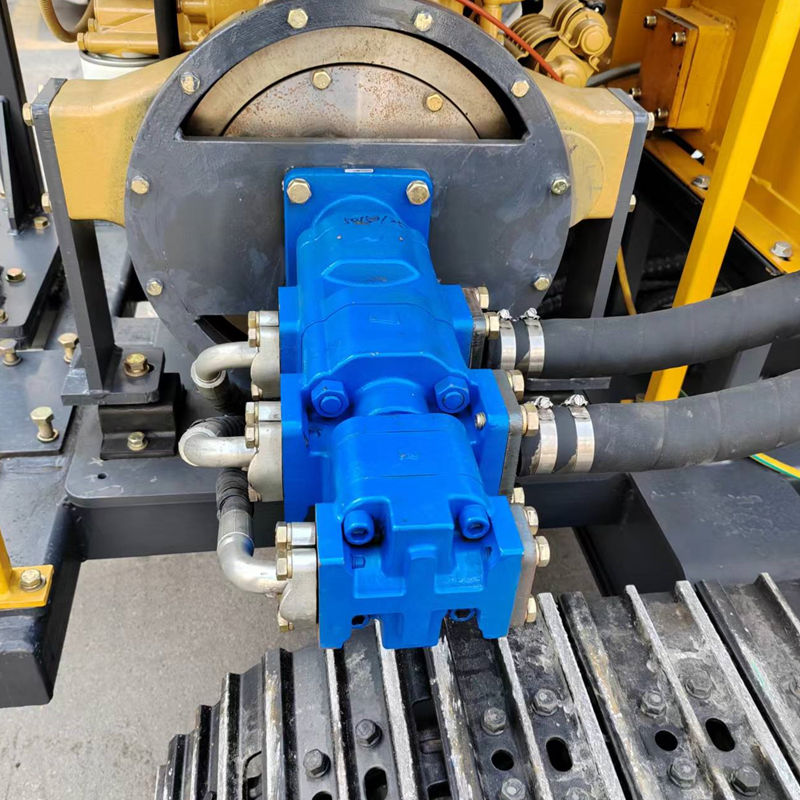

Triple gear pump, Brand : PERMCO, USA

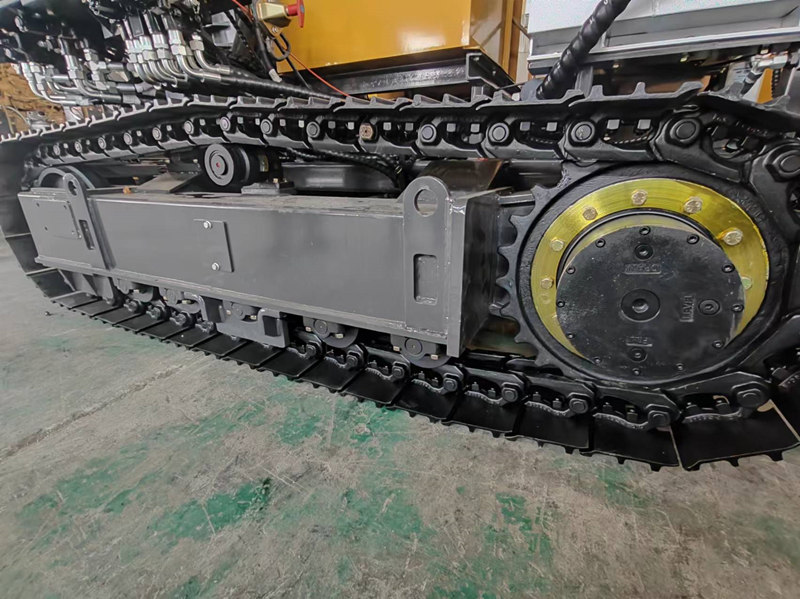

PC heavy-duty track assembly
The propulsion mechanism adopts the American Eaton
